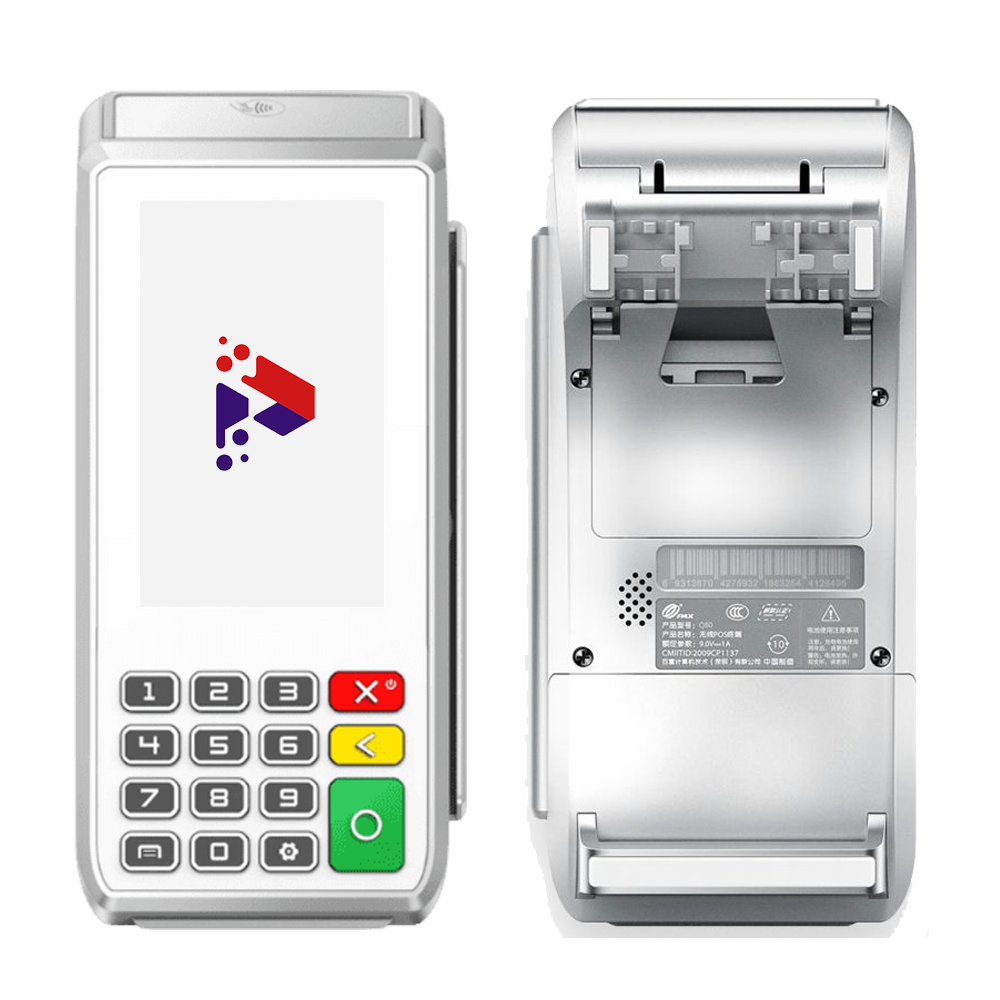

PAX A80
The PAX A80 is a versatile, high-performance Android payment terminal capable of keeping pace with the busiest business environments. Whether used as a countertop solution or as an indoor portable terminal, the A80 delivers reliable and secure transactions with every tap or swipe.
The flexible A80 offers multiple connectivity options—4G, Wi-Fi, Bluetooth, Ethernet, and dial-up. Whatever the circumstances and wherever you operate, payment processing runs smoothly. Plus, the bright 10.16 cm HD touchscreen and physical keypad make every transaction simple and intuitive for customers and staff alike.
All-in-one SmartPOS
Multiple payment types
Always connected
Fast, secure transactions
Optional battery backup
User friendly interface
Technical Specifications
|
Operating System |
Paydroid Powered by Android 6.0/7.1 |
|
Processor |
Cortex-A53 |
|
Memory |
1GB DDR + 8GB eMMC | 1 x Micro SD Card Slot, Supports up to 32GB |
|
Card Readers |
Chip & PIN | NFC Contactless | Magnetic Stripe |
|
Cameras |
Optional: 0.3MP Front-Facing |
|
Displays |
4'' TFT WVGA 480 x 800 Pixels Multi-Point Capacitive Touch Screen |
|
Comms Con¬figurations |
WiFi 2.4G/5G (optional) | 2G (GPRS) (optional) | Dial (PSTN) | LAN Bluetooth 4.0 (optional) | WCDMA (optional) | 4G (FDD-LTE/TDD-LTE) (optional) |
|
Battery |
Optional 720mAh | 7.4V |
|

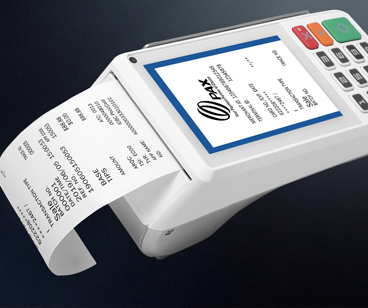

Printer |
50 lines/sec | Paper roll outer diameter: 50mm |
|
SIM / SAM |
3 x SAM | 1 x SIM + 2 x SAM | 2 x SIM + 1 x SAM |
|
Keys / Buttons |
15 keys: 0~9 | Menu | Func | Cancel | Clear | Enter |
|
Audio |
1 Speaker |
|
Ports |
1 RS232 | 1 PSTN | 1 Ethernet | 1 PINpad | 1 Micro USB 2.0, OTG | 1 Host USB 2.0 | 1 Phone |
|
Adapter |
Input: 100-240V AC, 50Hz/60Hz | Output: 9.0V DC, 1.0A 181 * 84 * 81mm Weight: 405g (Excluding Battery) |
|
Physical |
181 * 84 * 81mm Weight: 405g (Excluding Battery) |
|
Environmental |
-0°C ~ 50°C (32°F ~ 122°F) Operating Temperature -20°C ~ 70°C (-4°F ~ 158°F) Storage Temperature 10% ~ 93% Relative Humidity, Non-Condensing |
|
Accessories |
Cluster Cable (optional) | Privacy PIN Shield (optional) | Battery Backup (optional) |
|
Certi¬fications |
PCI PTS 5.x SRED | EMV L1 & L2 | EMV Contactless L1 | Visa payWave | MasterCard Contactless | American ExpressPay | Discover D-PAS | JCB J/Speedy | Interac Flash L2 | IC MasterCard TQM | CE| RoHs | UL | FCC |
PAX A80
The PAX A80 is a rock-solid, reliable Android payment terminal that gives you the reliability you need.
Use it as a countertop or portable device with optional battery backup.
Why you'll love it:
- Accepts all payment types, including contactless, chip & PIN, and magstripe
- Options for 4G, Wi-Fi, Bluetooth, Ethernet, and dial-up connection
- Fast, secure, and PCI-certified
